Name: Trotec TFV 100 Ex – radial fan ventilator
SKU: TFV 100 EX
Availability: InStock

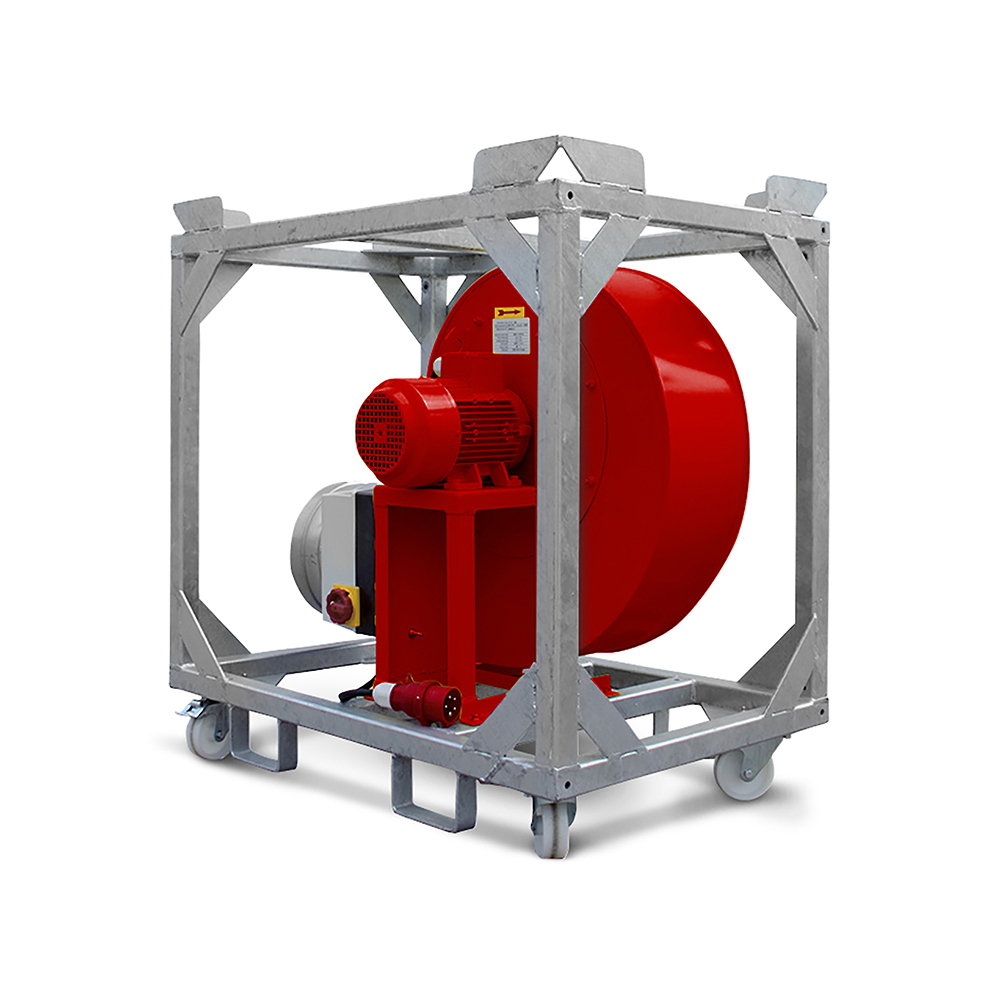

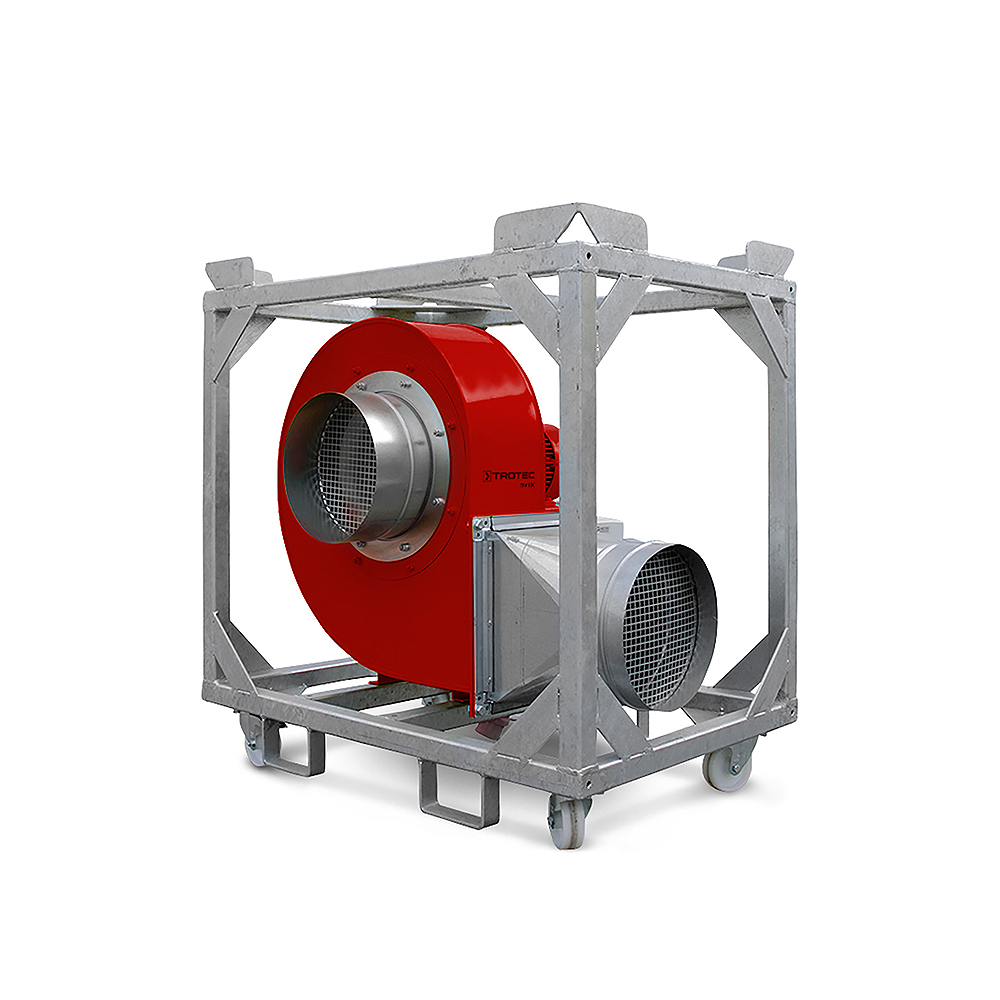

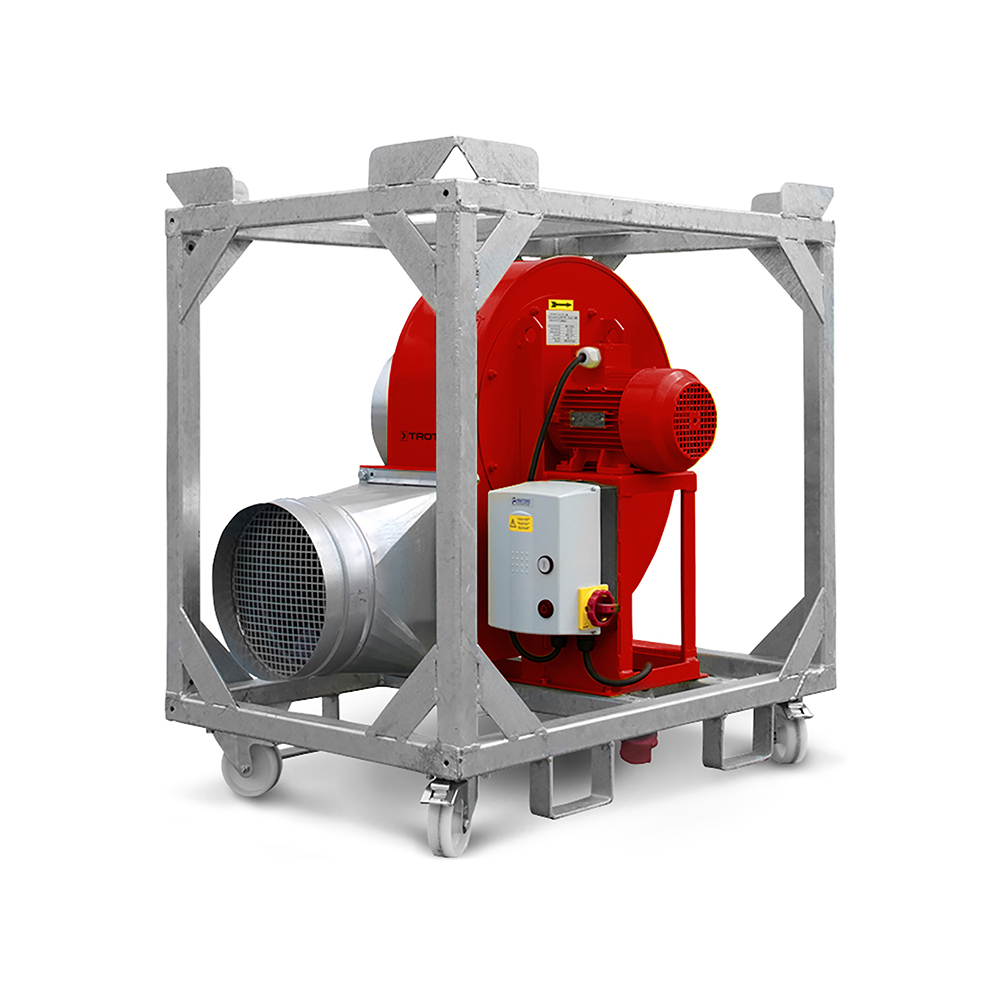

Trotec TFV 100 Ex – radial fan ventilator

32091,80 ₾

Radial fans for explosion protection zones

The TFV 100 Ex is an explosion-proof radial fan designed for use in hazardous environments. With an airflow rate of up to 1,500m³/h, it is ideal for tasks such as drying, cooling, and ventilation in areas where there is a risk of explosion. The fan features a lightweight and durable plastic housing that is certified for use in explosive atmospheres. It also has a variable speed control and an adjustable air outlet, allowing you to customise the airflow to your specific needs. With its high-performance motor and explosion-proof design, the TFV 100 Ex is a great choice for hazardous ventilation tasks.

Key features

Robust high-quality radial fan
Explosion group II, category 3G, temperature class 4
Fan motor is placed outside of the main air current

Connectable to intake and exhaust ducts
Stable characteristics and constantly high pressure
Optionally available for explosion group II, category 2G (zone 1), category 2D (zone 21) and category 3D (zone 2)

Product specifications

Specifications	Units	TFV 100 Ex
Air volume freely blowing max.	m³/h	4,000
Air flow		blowing out / sucking in
Air discharge speed	m/s (km/h)	17/61.2
Fan stages		1
Air pressure max.	Pa	2,080
Max. transport medium temperature	°C	60
Power supply	V/Hz	400/50
Power input	kW	2.2
Necessary fuse	A	10
Explosion protection		2/ II3G, T4
Type of protection		IP55
Sound level @3m	dB(A)	81.5
Product size (l x w x h)	mm	960 x 560 x 750
Weight	kg	120

Suitable for:

Agriculture
Construction
Events and festivals
Industrial, factories and production

Rental companies
Warehouses and storage
Water damage restoration
