Name: Trotec TFV 300 Ex – radial fan ventilator
SKU: TFV 300 EX
Price: 34458.95 GEL
Availability: InStock

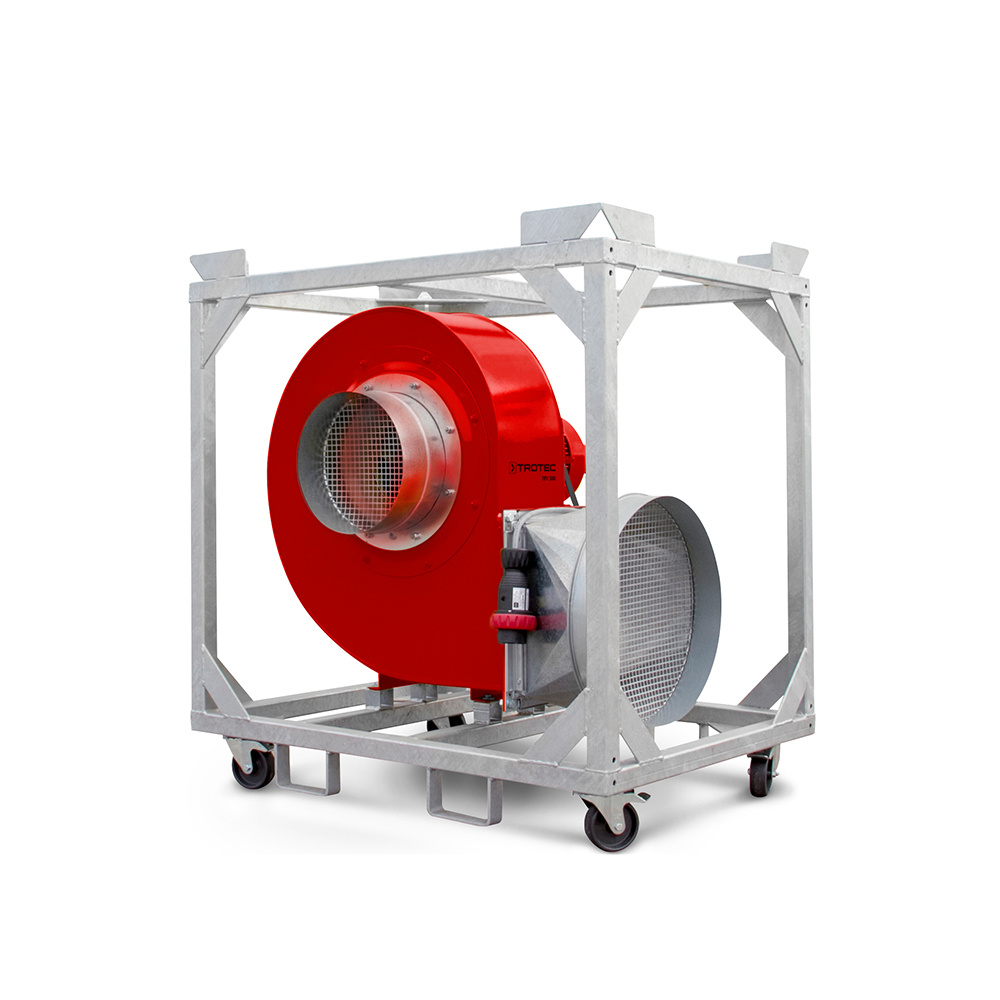

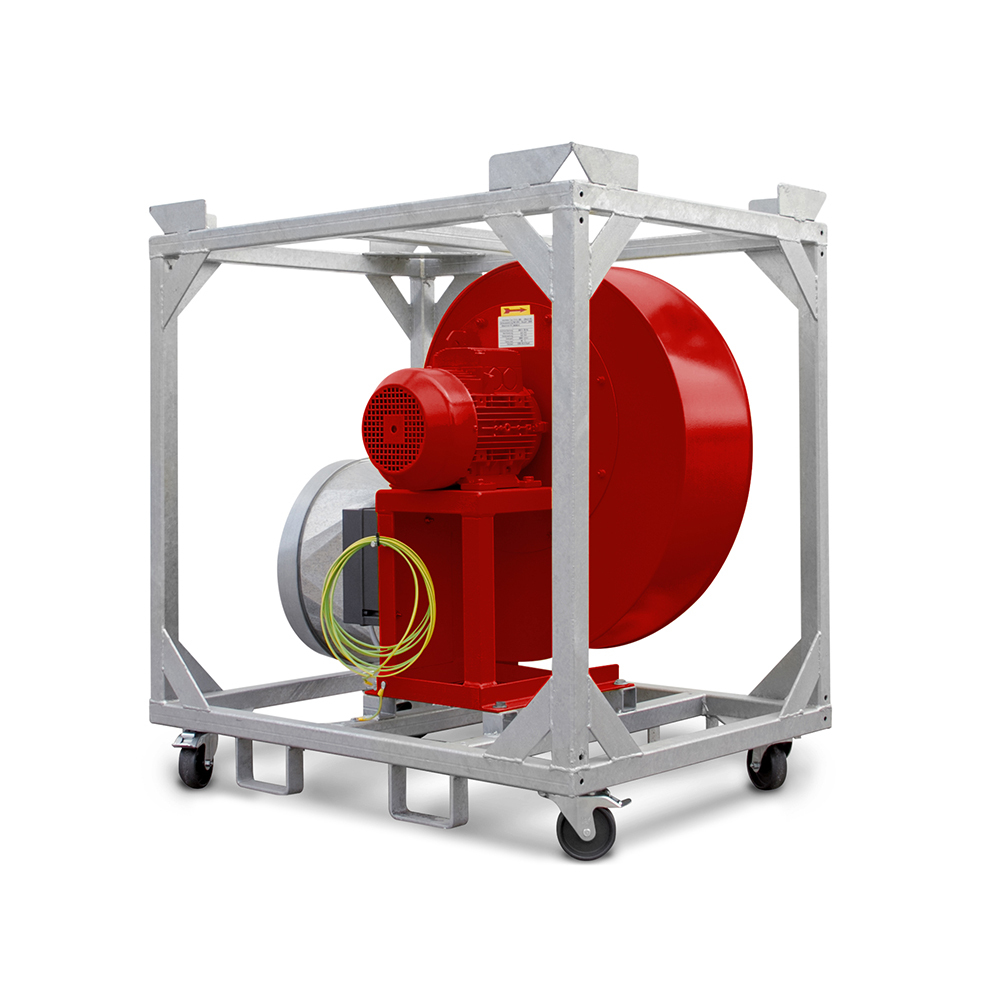

Trotec TFV 300 Ex – radial fan ventilator

34458,95 ₾

Radial fans for explosion protection zones

The TFV 300 Ex is a powerful explosion-proof radial fan designed for use in hazardous environments. With an airflow rate of up to 5,000m³/h, it is ideal for ventilating large spaces in areas where there is a risk of explosion. The fan features a durable steel construction and a high-performance motor that is certified for use in explosive atmospheres. It also has a convenient carrying handle and can be easily transported and installed. With its impressive performance and explosion-proof design, the TFV 300 Ex is a great choice for demanding ventilation tasks in hazardous settings.

Key features

Robust high-quality radial fan
Explosion group II, category 3G, temperature class 4

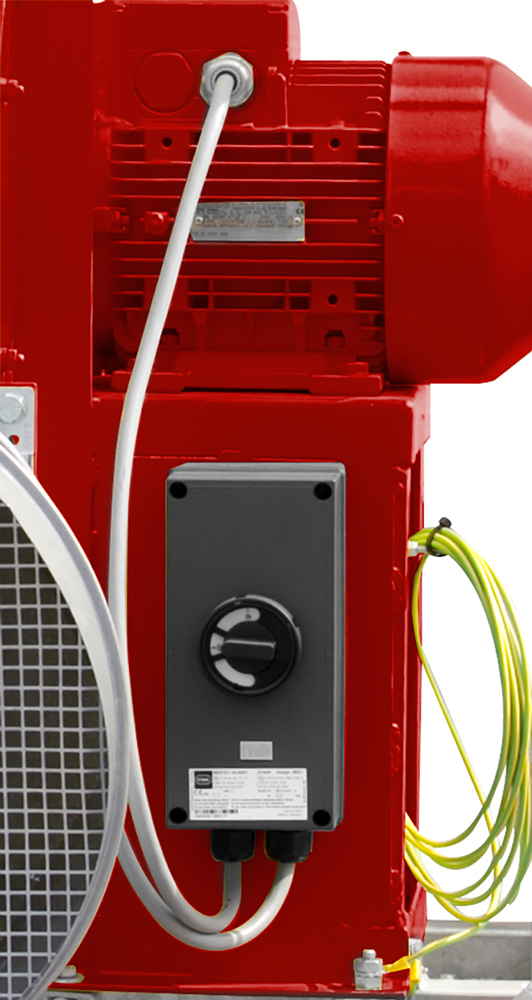

Fan motor is placed outside of the main air current

Connectable to intake and exhaust ducts
Stable characteristics and constantly high pressure
Optionally available for explosion group II, category 2G (zone 1), category 2D (zone 21) and category 3D (zone 2)

Product specifications

Specifications	Units	TFV 300 Ex
Air volume freely blowing max.	m³/h	7,000
Air flow		blowing out / sucking in
Air discharge speed	m/s (km/h)	27/97.2
Fan stages		1
Air pressure max.	Pa	2,800
Max. transport medium temperature	°C	60
Power supply	V/Hz	400/50
Power input	kW	4
Necessary fuse	A	16
Explosion protection		2/ II3G, T4
Type of protection		IP55
Sound level @3m	dB(A)	71
Product size (l x w x h)	mm	1000 x 700 x 830
Weight	kg	150

Suitable for:

Agriculture
Construction
Events and festivals
Industrial, factories and production

Rental companies
Warehouses and storage
Water damage restoration
