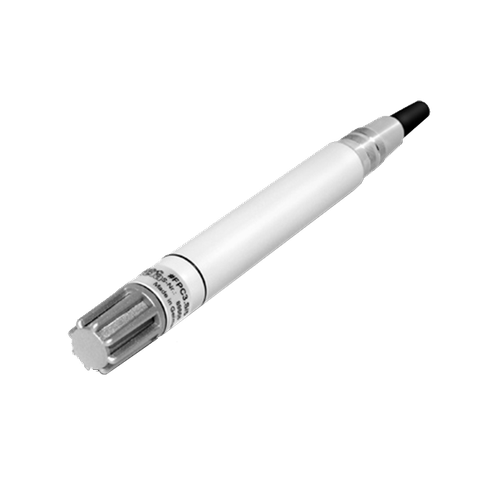

Temperature / Humidity sensor Galltec KPC active

The temperature humidity sensors are compact sensors in a rod-design with plug-in connection to measure relative humidity and temperature (individually or together) with high precision in air an other non-aggressive gases.
The delivery includes the coupling plug.
The relative humidity is measured by a capacitive sensing element and the value will be placed at the output as analog output as well.

Type	Temperature Sensor	Humidity Sensor
Measurement principle	Pt100 1/3 DIN acc. DIN EN 60751	Capacitive
Measurement range	-30 … +70 °C	0 … 100% RH
Slope (Data Logger Meteo-40)	100	100
Offset (Data Logger Meteo-40)	-30	0
Accuracy
Accuracy	± 0.2 K (-27 … +80 °C)	± 2% RH (5 … 95% RH @ 10 … 40 °C)
Additional error	± 0.007 K/K (<10 °C, >40 °C)	< 0.1 %/K (<10 °C, >40 °C)
Operating range
Ambient temperature	-40 … +80 °C
Minimum air speed (across sensor)	≥ 0.5 m/s
Electrical data
Output signal	0 … 1 V
Operating supply	6 … 30 VDC
Current Consumption @ 12 V DC	2 mA
General
Connection	7-pol plug for shielded cable
Dimensions	155 x Ø 20 mm
Weight	approx. 0.1 kg
Protection Sensor	IP 30
Protection Electronic	IP 65
Protection Coupling	IP 67
Manufacturer	Galltec
