Meteo-42 is easy to configure – from your office or directly on site – using the same communication tools and software as the Meteo-40 plus: AmmonitConnect and AmmonitOR cloud. Our data loggers are easy to install and work reliably worldwide.
Meteo-42 brings those technical innovations:
• Three RS-485 ports
• Faster processors
• Better grounding for more accurate measurement of analog quantities
• More flexible switches.

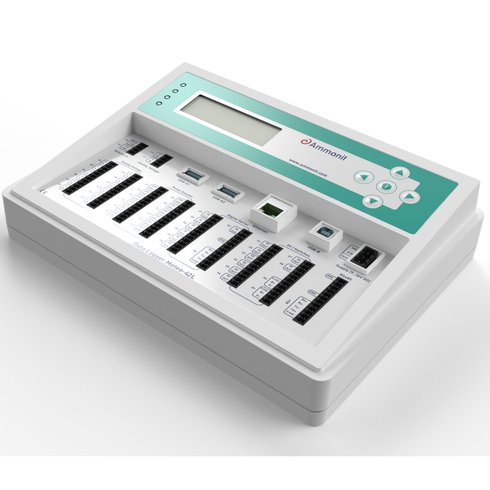

| Meteo-42L | Description / Device | ||
|---|---|---|---|
| Order Number | M31050 | ||
| Input Channels | Pulse Counters | 12 | Anemometers, precipitation sensors |
| Digital Serial (Status) | 7 | Wind vanes serial, precipitation monitors, ext. activation | |
| Analog Voltage | 14 ± 0.1 V, ± 1 V, ± 10 V, 16 bit | Air pressure, temperature, humidity sensors, pot. wind vanes, pyranometers, pyrheliometers | |
| RS485 (Client) | 3 RS485 Client Interfaces | Ultrasonic anemometers and smart sensors | |
| Output Channels | RS485 (S) | (1) RS485 Server | SCADA monitoring software |
| 5V | Switches | 9 | Sensor supply, relay for modem, heating supply | |
| Current Source | 1 | Pt1000, Pt100 | |
| Reference Voltage Source | 1 | 5 Volt reference source | |
| Connectivity | USB | (2) USB-A host (USB 2.0 High Speed) (1) USB-B device (USB 2.0 High Speed) | PC, modem, memory stick, WiFi, GPS, camera |
| Ethernet | (1) Ethernet | Router, satellite modem, LAN and SCADA output | |
| Data transfer | Email, FTP, SCP, SFTP, FTPS, data copy on USB flash drive, SCADA, API | From Meteo-42 data logger and from AmmonitOR Data Cloud | |
| Data cloud | AmmonitOR Data Cloud | https://or.ammonit.com Data Cloud for campaign monitoring | |
| Remote access to Data Logger | Ammonit Connect Remote Access to Data logger | https://<serialnumber>.connect.ammonit.com/ Remote web UI access to data logger for configuration | |
| Live data | XMPP messages | Ammonit Live Data Suite with PubSub server, server side data collection, and web app for immediate transmission and display of measurement data | |
| Storage Size | Source Data (1-sec data) | 2 GB | enough for 6-12 months |
| CSV Data (10-min data) | 0,5 GB | enough for ≤ 15 years | |
| Display & Keys | (20 x 4) LC display with backlight, five keys | ||
| Power Supply | 9 … 36 V DC | ||
| Operat. temperature | -40 … +65 °C | ||
| Protection (Housing) | IP65 | ||
| Housing Dimensions | 260 x 194 x 67 mm | ||
| Weight | 1110 g | ||
| Accessories | External modules, plug connector, mounting kit, steel cabinet | ||
