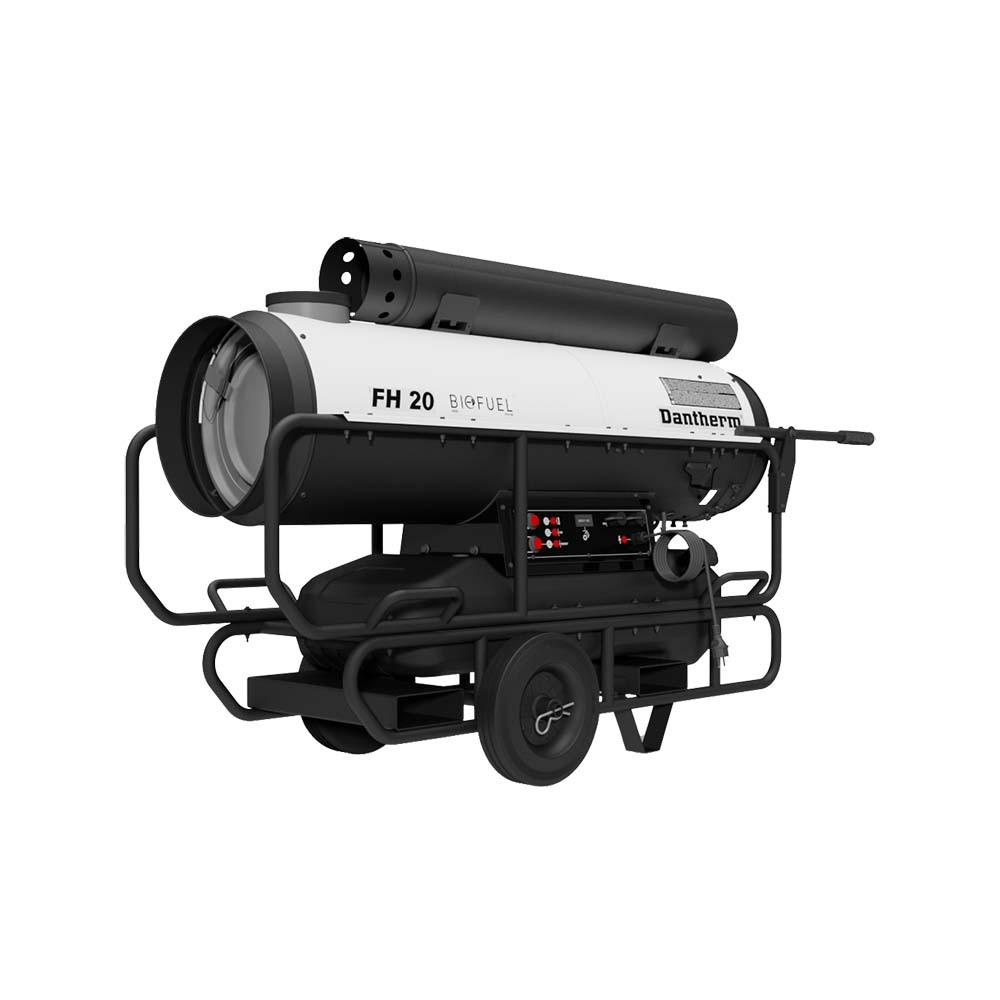

Dantherm FH 20-40 – tent heaters Tent heaters

The heaters are based on the indirect fired (clean air) principle to avoid introducing combustion or fumes into occupied spaces. With their industry-leading warm-up capabilities, the forced air system heaters are essentially self-contained and require no more than an external source electric power and some fuel in the built-in tank. They run on almost all diesel fuels.

Specifically developed to provide heating in tents or other temporary and transportable buildings, FH Warm Air Heaters are suitable for outside installation with supply and return air ducted to the tent or temporary building.

View all of our tent heaters or search for an indirect oil fired, indirect fuel fired or other type of commercial heater to meet your required applications.

Dantherm Group catalogue – Humanitarian and Defence

Categories: DANTHERM GROUP CLIMATE CONTROL SOLUTIONS, Heaters, Tent heaters
  • Description
Description

Key features

  • Can operate at temperatures down to -40°C
  • Creates a comfortable working environment
  • Equipment and transportation such as helicopters stay warm and ready for use, reducing wear and tear and ensuring quicker response times
  • Reliable and virtually maintenance free
  • Easy to transport
  • Can be set up by one person without the use of tools, and is easy to operate
  • Developed in close collaboration with the armed forces of NATO countries
  • Ideal for open air operation with ducted supply and return air
  • Adjustable fresh-air intake
  • Large built-in fuel tank
  • The efficient multi-liquid burner accepts almost all diesel fuels
  • New innovative 2 stage burning principle, which reduces energy consumption, creates a more comfortable room temperature and reduces wear and tear
  • CE-marked

Product variants

  • Bronze = Unit with built-in wheels
  • Silver = Bronze package + lifting pockets

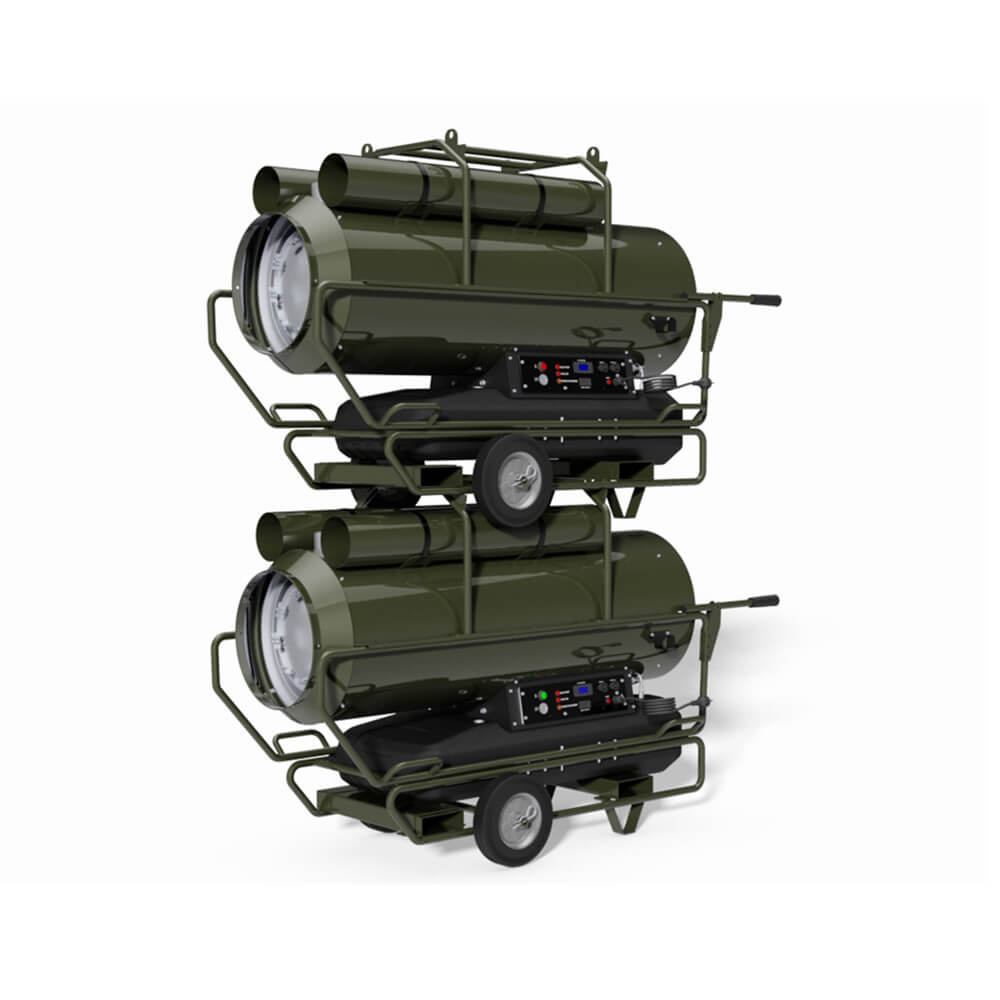

  • Gold = Silver package + stackable frame

Product specifications

  • Select model:

  • FH 20
SpecificationsUnitsFH 20
Registered NSN number
–
Yes
Operating temperature range
°C
-40 – +30
Heat output – stage 1/2
kW
21/27
Air flow
m3/h
1,815
Sound level (measured with mounted hoses) @ 1.5m
dB(A)
74
Protection class
IP44
Max. fuel consumption
l/h
1.6/2.1
Power supply
V/Hz
230/1ph/50
Rated current
A
3.8
Air discharge increasing temperature
°C
37/49
Flex duct connection
Ømm
350
Tank capacity
l
65
Product size (h x l x w)
mm
1458 x 614 x 966
Weight – Bronze variant
kg
95

Model:

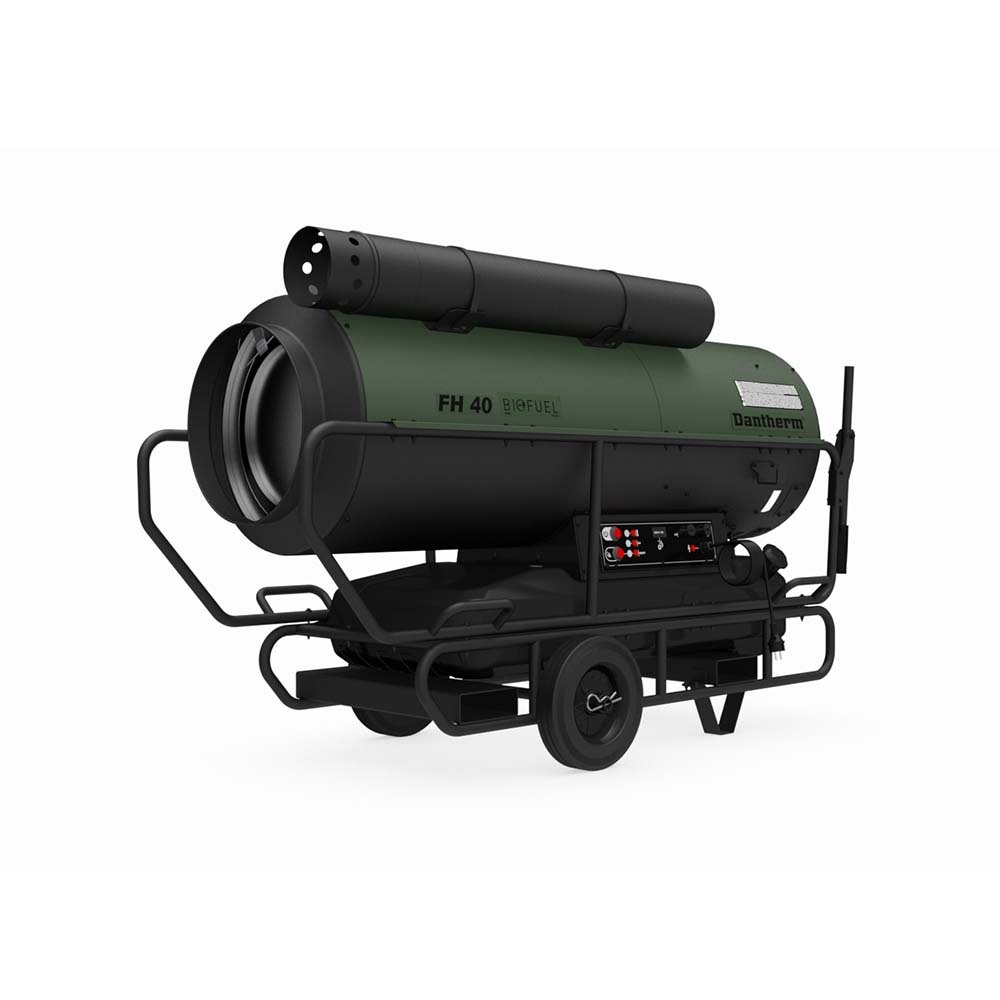

  • FH 40
SpecificationsUnitsFH 40
Registered NSN number
–
Yes
Operating temperature range
°C
-40 – +30
Heat output – stage 1/2
kW
36/49
Air flow
m3/h
2,555
Sound level (measured with mounted hoses) @ 1.5m
dB(A)
70
Protection class
IP44
Max. fuel consumption
l/h
2.9/3.9
Power supply
V/Hz
230/1ph/50
Rated current
A
4.2
Air discharge increasing temperature
°C
36/49
Flex duct connection
Ømm
400
Tank capacity
l
105
Product size (h x l x w)
mm
1723 x 718 x 1039
Weight – Bronze variant
kg
125

Suitable for:

  • Camps and field hospitals
  • Events and festivals
  • Military and aerospace
