Key features

User-friendly control system for high-quality demand management. Automatic monitoring and control of temperature and humidity of the pool hall
Counter-flow heat exchangers with a high efficiency of up to 93% and a low pressure drop
Built-in by-pass for free cooling in the summertime.
Highly energy-efficient EC plug fans
Efficient bag filters in different lengths and qualities with low pressure drops are available

Load-bearing frame construction module with hot-dip galvanised, powder-painted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet
Designed to withstand the aggressive swimming pool environment (corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated counter-flow heat exchanger, heating coil with aluminium frame, prepainted fins and epoxy coating to protect all fasteners, bolts, nuts

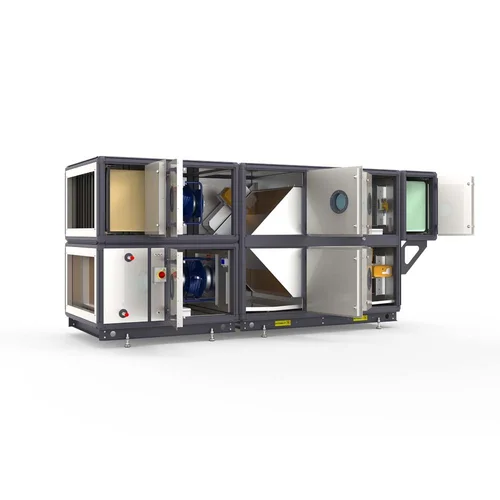

Large inspection doors with strong hinges and tongue locks and handles for easy access for service
Modular unit for easy and quick installation – all sensors and electrical components pre-connected
BMS communication with either Modbus or BACnet

Product specifications

Select model:
DANX CF 3/5
DANX CF 4/7
DANX CF 6/9
DANX CF 8/12
DANX CF 10/14
DANX CF 12/17
DANX CF 16/23
DANX CF 19/28
DANX CF 22/32

Specifications	Units	DANX CF 3/5
Nominal air volume	m³/h	3,100
Max air volume	m³/h	4,500
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	20 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	1,700
Width	mm	3,790
Depth	mm	880
Weight	kg	800

Specifications	Units	DANX CF 4/7
Nominal air volume	m³/h	4,400
Max air volume	m³/h	6,500
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	29 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	1,700
Width	mm	3,790
Depth	mm	1,185
Weight	kg	960

Specifications	Units	DANX CF 6/9
Nominal air volume	m³/h	6,300
Max air volume	m³/h	9,000
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	41 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	2,300
Width	mm	4,490
Depth	mm	1,185
Weight	kg	1,335

Specifications	Units	DANX CF 8/12
Nominal air volume	m³/h	8,000
Max air volume	m³/h	11,500
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	52 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	2,300
Width	mm	4,490
Depth	mm	1,473
Weight	kg	1,530

Specifications	Units	DANX CF 10/14
Nominal air volume	m³/h	9,800
Max air volume	m³/h	14,000
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	63 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	2,300
Width	mm	4,490
Depth	mm	1,778
Weight	kg	1,730

Specifications	Units	DANX CF 12/17
Nominal air volume	m³/h	11,600
Max air volume	m³/h	17,000
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	75 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	2,300
Width	mm	4,490
Depth	mm	2,066
Weight	kg	1,950

Specifications	Units	DANX CF 16/23
Nominal air volume	m³/h	16,000
Max air volume	m³/h	23,000
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	104 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	3,000
Width	mm	4,760
Depth	mm	1,964
Weight	kg	2,365

Specifications	Units	DANX CF 19/28
Nominal air volume	m³/h	19,000
Max air volume	m³/h	28,000
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	123 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	3,600
Width	mm	4,760
Depth	mm	2,066
Weight	kg	2,685

Specifications	Units	DANX CF 22/32
Nominal air volume	m³/h	22,000
Max air volume	m³/h	32,000
Outdoor air volume	%	0-100
Dehumidification capacity VDI 2089	kg/h	142 at 30°C/54% indoor
Power supply	V/Hz	400/3ph/50
Height	mm	3,600
Width	mm	4,760
Depth	mm	2,370
Weight	kg	2,755

Suitable for:

Automotive
Commercial buildings
Food and beverage
Industrial, factories and production

Leisure and recreation
Museums and galleries
Swimming pools

Useful downloads

Dantherm Group Catalogue – Professional Installed Solutions

Catalogs

Dantherm DanX – product guide

Guides

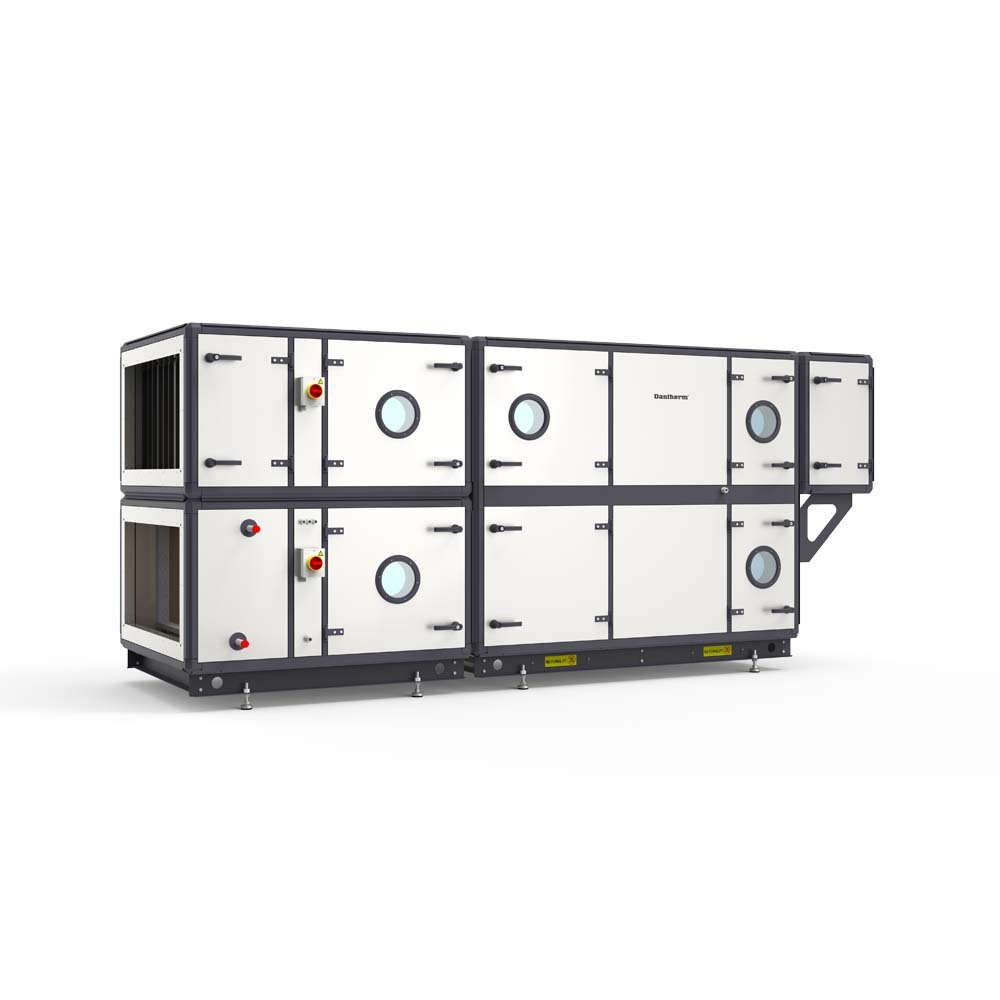

Dantherm DanX CF – air handling units

Swimming pool and commercial

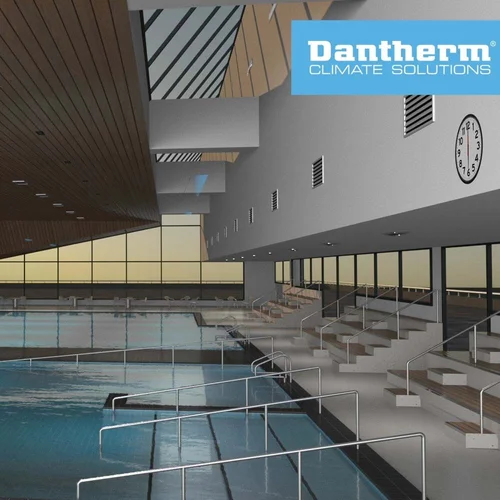

The DanX CF is a very effective outdoor air dehumidification system with a highly efficient counter-flow heat exchanger. This system perfectly controls the humidity and indoor temperature while offerring significant running cost reductions due to real energy savings of up to 80%. The integrated mixing function ensures that only the exact quantity of outdoor air needed is supplied. This keeps running costs at a minimum.

Free cooling is also an option during summer, when the unit can add up to 100% outdoor air into the pool area through the integrated by-pass.

For countries with high outdoor summer temperatures the system can be equipped with an additional cooling coil for further dehumidification and air cooling.

A wide range of fan types, filter qualities and coils are is available on request, enabling you to create the perfect solution for your requirements.
