Key features
-

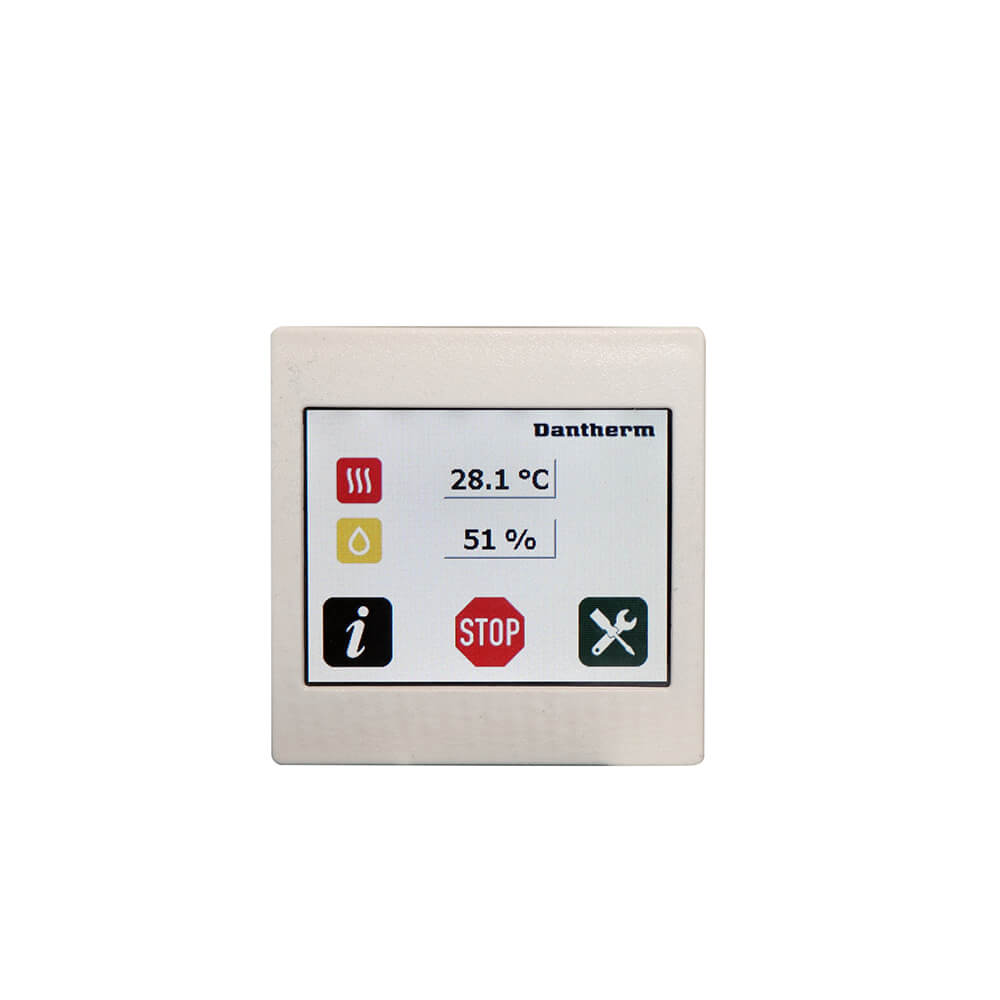

Built-in user friendly control system for high-quality demand management Automatic monitoring and control of pool hall temperature and humidity The custom-built software runs the unit as efficiently as possible under different conditions
-
Double crossflow heat exchangers with a high efficiency of more than 95% and a low pressure drop
-
Built-in by-pass for free cooling in summertime
-
Highly energy-efficient EC plug fans
-
Efficient M5/ePM10 70% and F7/ePM1 55% compact filters with low pressure drop
-
Self-bearing cabinet with hot-dip galvanised, powderpainted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet
-
Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchangers heating coil with aluminium frame, prepainted fins and epoxy coating to protect all fasteners, bolts, nuts
-
Two large inspection doors with strong hinges and tongue locks and handles for easy access for service
-
All-in-one box solutions for easy and quick installation – all sensors and electrical components pre-connected
-
BMS communication with either Modbus or BACnet

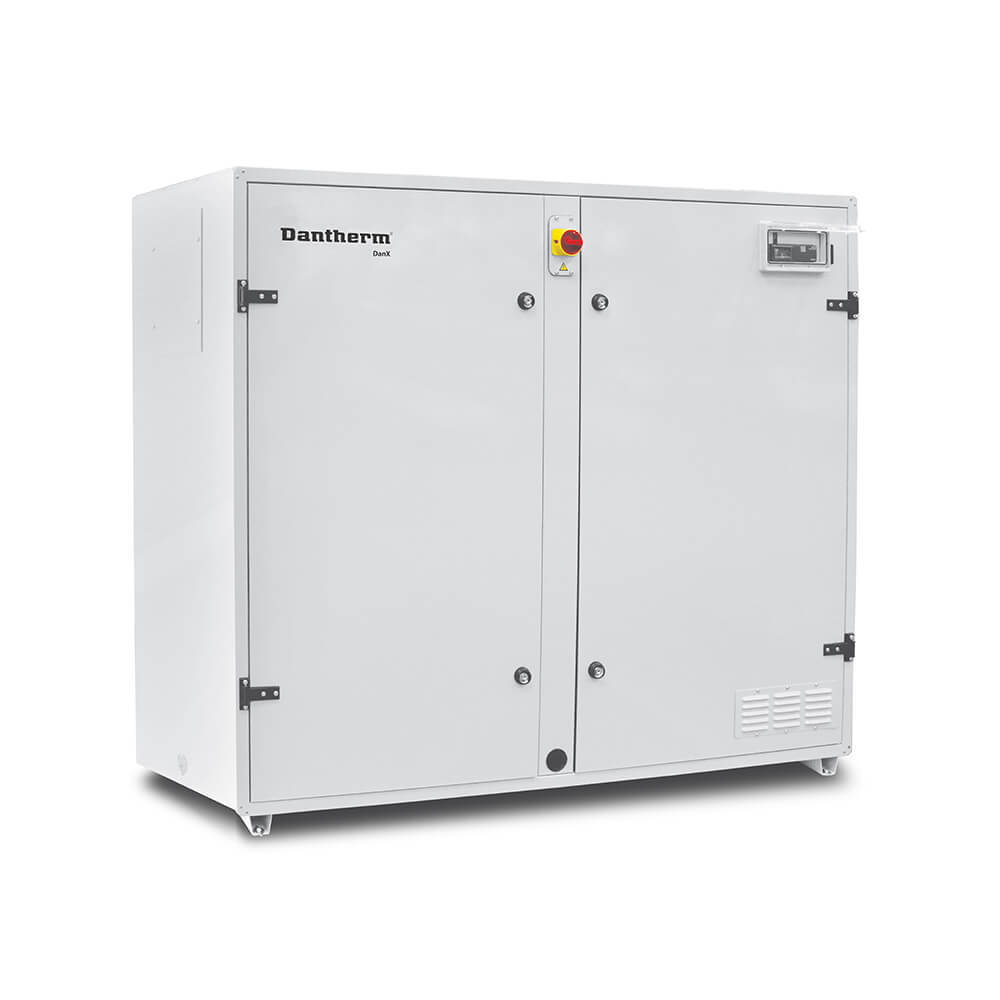

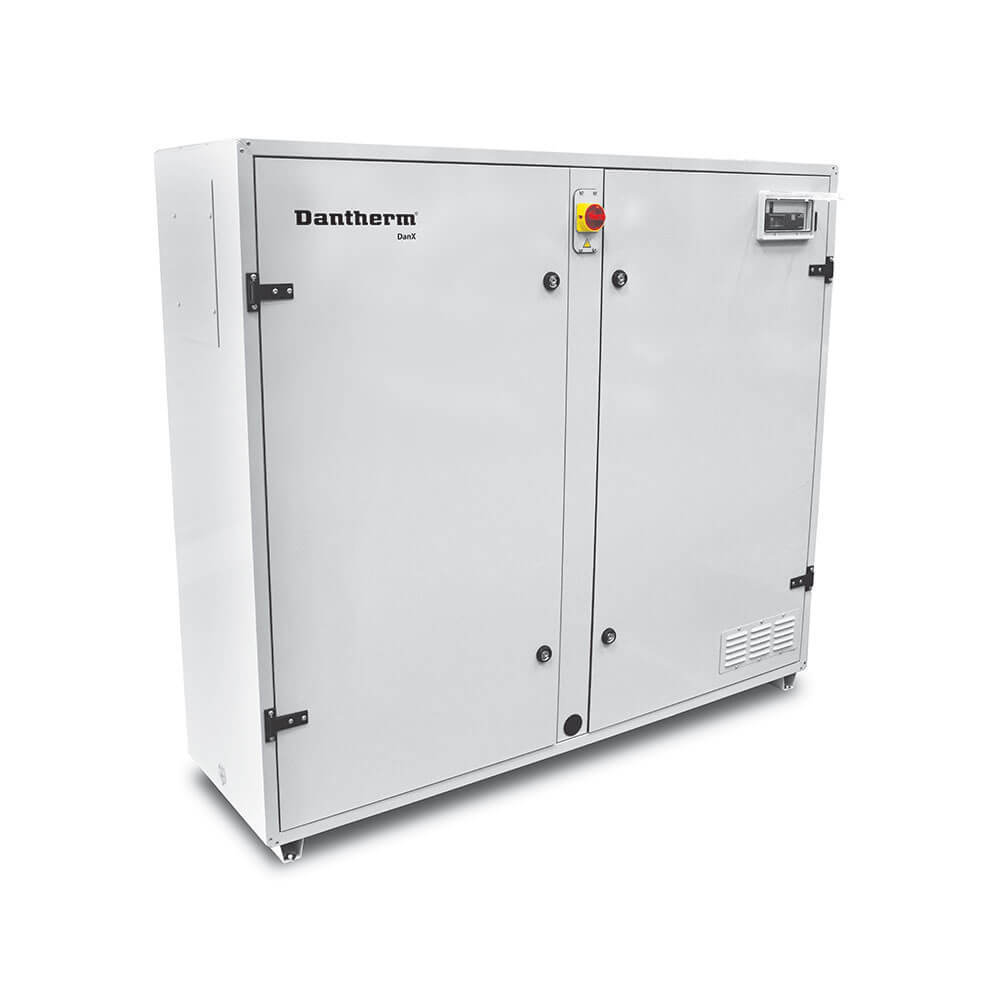

DanX XD with double cross flow heat exchanger

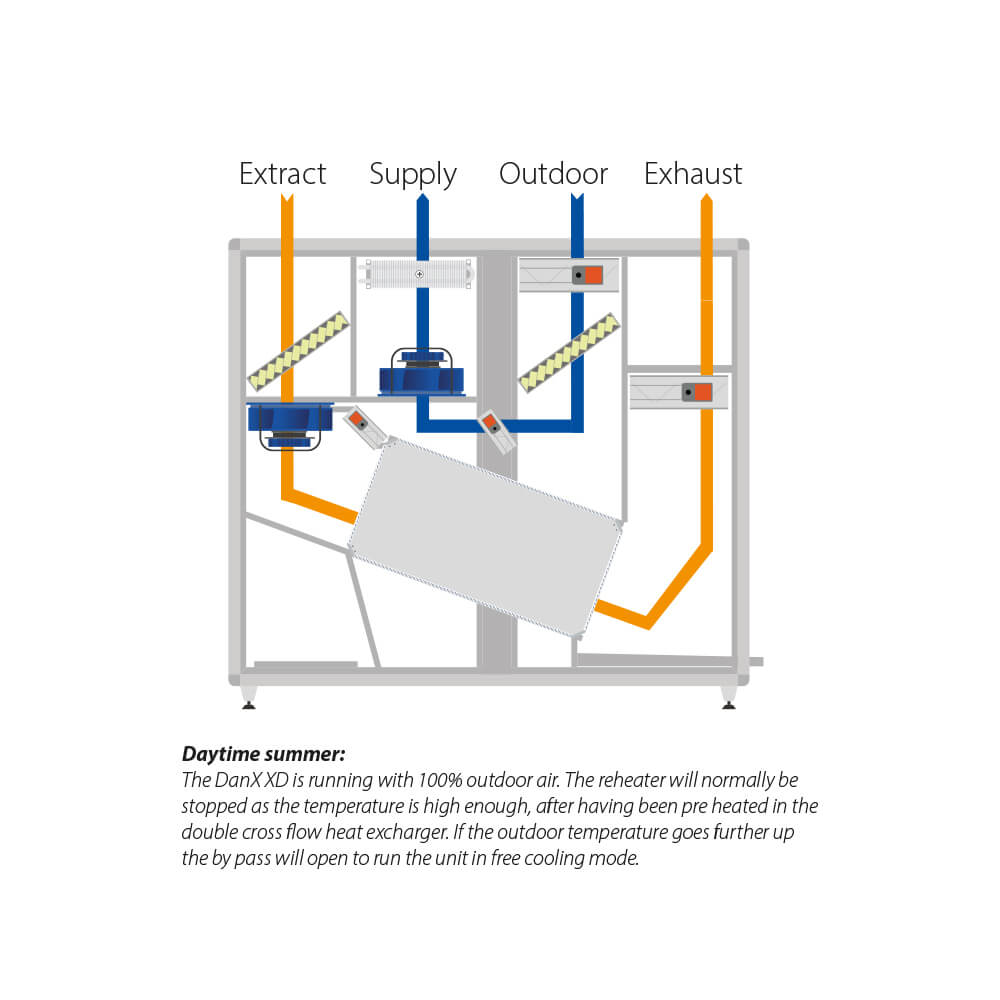

The DanX XD is a very effective ventilation system that uses outdoor air to provide dehumidification using a double heat exchanger that delivers up to a 95% heat recovery. This reduces energy consumption and total operating costs. Making the unit perfect for managing humidity and temperature in the pool room.
The built-in mixing function takes care not to add any more outdoor air than necessary to provide a comfortable indoor climate. Free cooling is also an option during summer, when the unit can add up to 100% outdoor air into the pool area through a by-pass.
The unit’s compact, integrated design enables optimal installation in the technical room. Convenient top or side connections ensure easy access to ducts.
Product specifications
-
Select model:
- DANX 1 XD
- DANX 2 XD
- DANX 3 XD
| Specifications | Units | DANX 1 XD |
|---|---|---|
| Nominal air volume |
m³/h
|
1,000
|
| Max. air volume |
m³/h
|
1,300
|
| Max. external duct pressure |
Pa
|
350 at nominal air volume
|
| Outdoor air volume |
%
|
0-100
|
| Dehumidification capacity VDI 2089 |
kg/h
|
7 at 30°C/54% indoor
|
| Max. total power consumption |
kW
|
1.1
|
| Power supply |
V/Hz
|
230/1ph/50
|
| Product size (w x d x h) |
mm
|
1750 x 515 x 1570
|
| Weight |
kg
|
254
|
| Specifications | Units | DANX 2 XD |
|---|---|---|
| Nominal air volume |
m³/h
|
1,750
|
| Max. air volume |
m³/h
|
2,100
|
| Max. external duct pressure |
Pa
|
350 at nominal air volume
|
| Outdoor air volume |
%
|
0-100
|
| Dehumidification capacity VDI 2089 |
kg/h
|
11 at 30°C/54% indoor
|
| Max. total power consumption |
kW
|
1.2
|
| Power supply |
V/Hz
|
230/1ph/50
|
| Product size (w x d x h) |
mm
|
1750 x 780 x 1570
|
| Weight |
kg
|
344
|
| Specifications | Units | DANX 3 XD |
|---|---|---|
| Nominal air volume |
m³/h
|
2,750
|
| Max. air volume |
m³/h
|
3,700
|
| Max. external duct pressure |
Pa
|
350 at nominal air volume
|
| Outdoor air volume |
%
|
0-100
|
| Dehumidification capacity VDI 2089 |
kg/h
|
18 at 30°C/54% indoor
|
| Max. total power consumption |
kW
|
1.9
|
| Power supply |
V/Hz
|
230/1ph/50
|
| Product size (w x d x h) |
mm
|
2250 x 890 x 1990
|
| Weight |
kg
|
465
|
Suitable for:
-
Leisure and recreation
-
Swimming pools
