Dantherm CDP 40-50-70T – swimming pool dehumidifiers

Wall-mounted swimming pool dehumidifiers

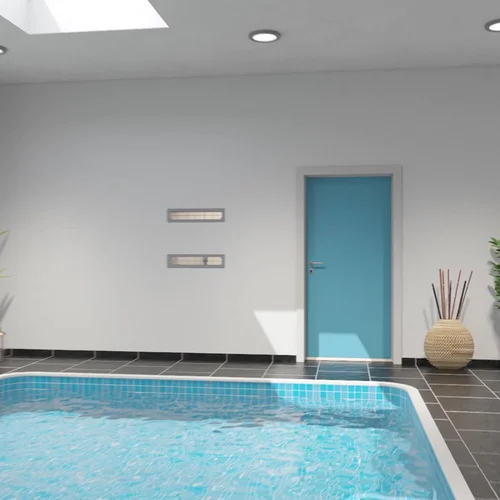

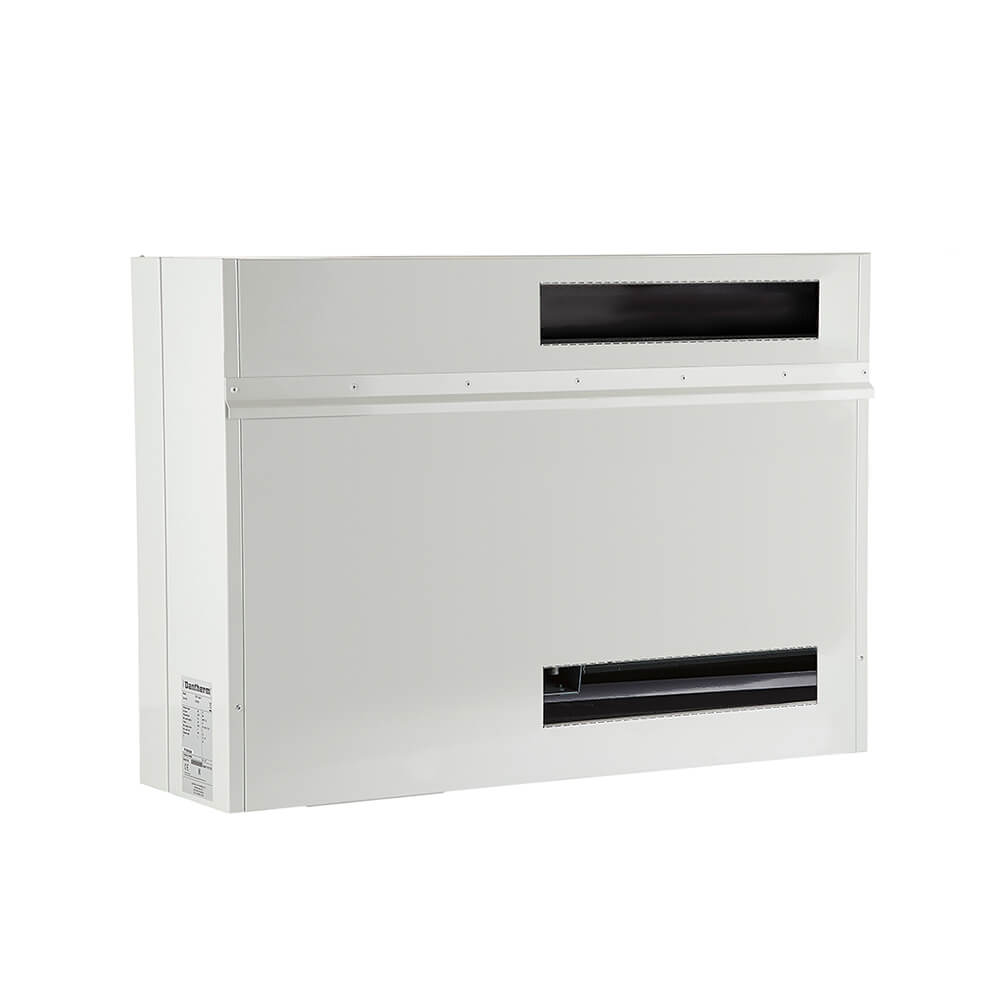

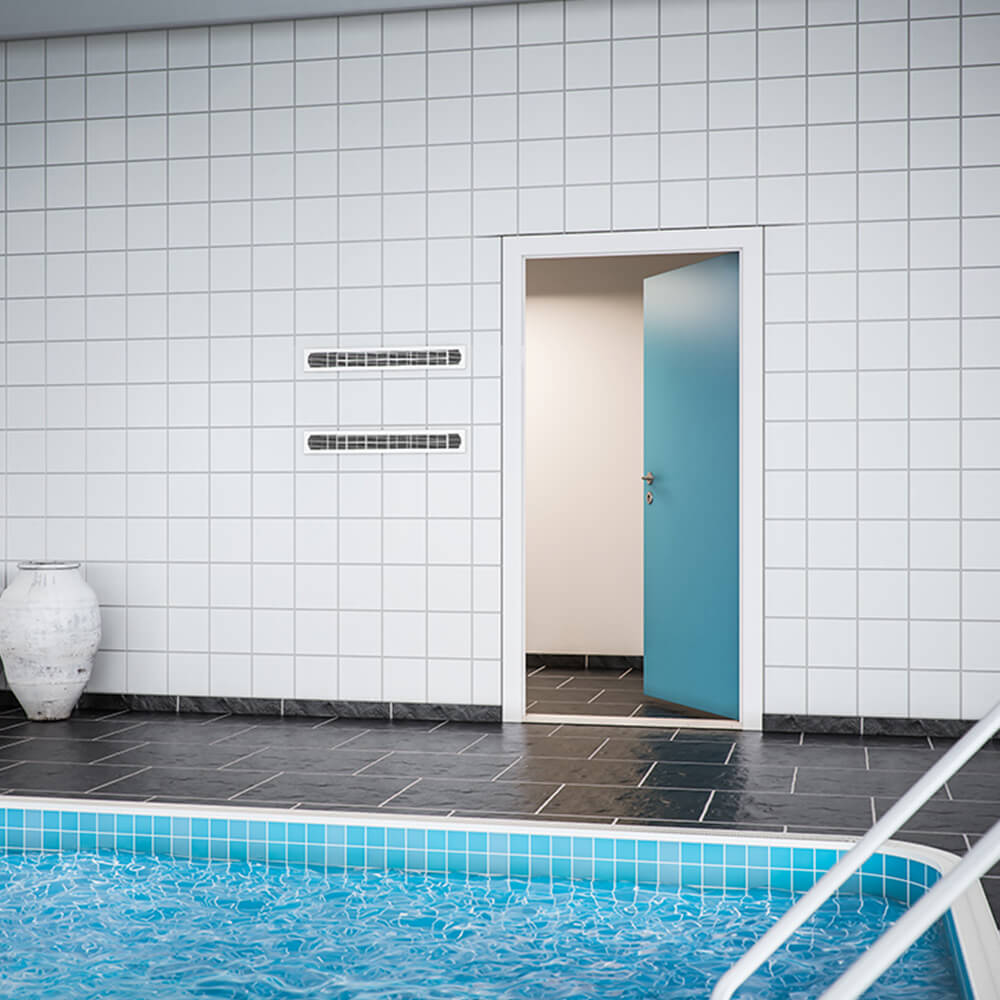

The CDP 40T-50T-70T condensation dehumidifiers have been designed for through-the-wall mounting in your swimming pool plant room. Designed as highly durable units, the dehumidifiers come with an intuitive user interface and monitoring options for easy operation. Combined with very efficient fans and compressors this secures efficient operation and significant energy savings.

The range is also available in wall-mounted or floor-standing versions.

View other swimming pool dehumidifiers or see our full range of commercial and industrial dehumidifiers suitable for multiple applications.

Key features

Low sound level
Low energy consumption
Evaporator and condenser coils are epoxy coated
Metal parts are powder coated before assembly

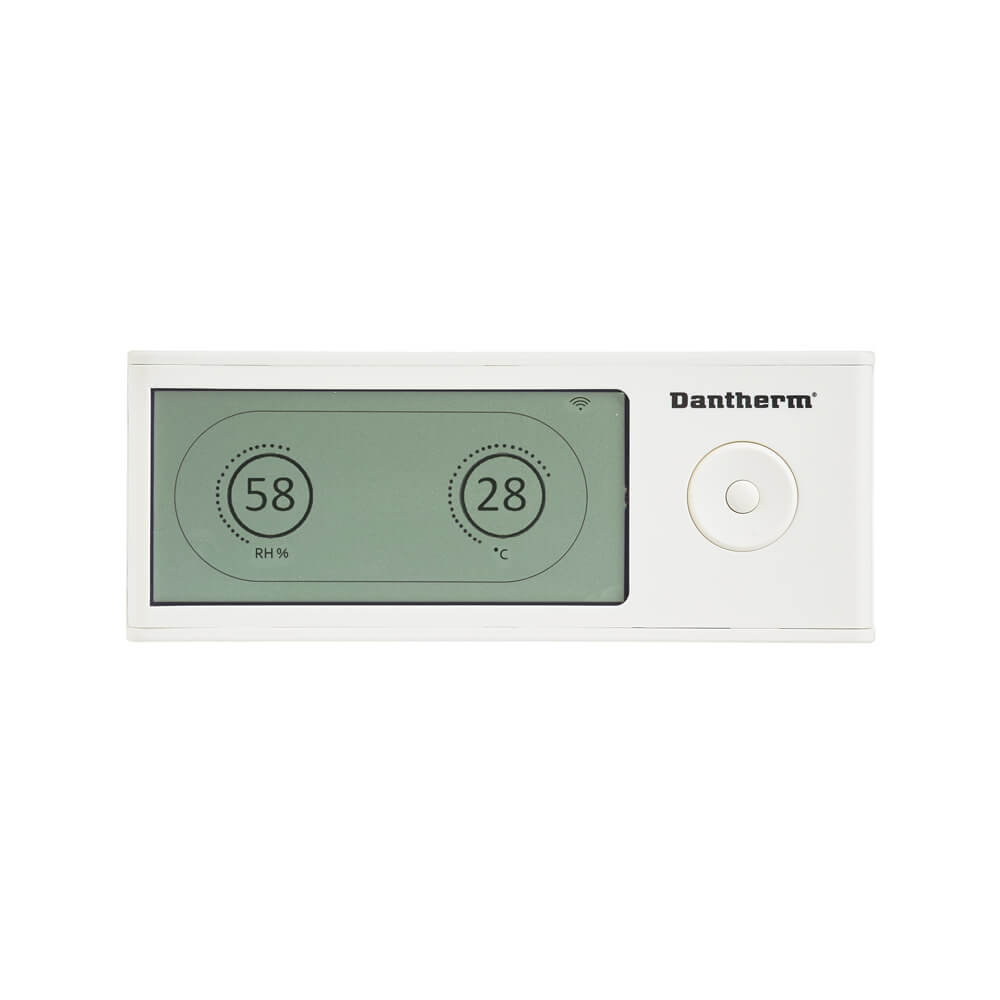

Optional remote control
Integrated control of heating and humidity (ON/OFF)
BMS Communication (Modbus RS485)

Dantherm CDP 40-50-70T dehumidifiers for humidity control in indoor swimming pools are developed with a focus to quality, functionality and energy saving. Highly efficient fans and compressors, combined with a new advanced remote control and control options, contribute to cost-efficient operation and significant energy savings.

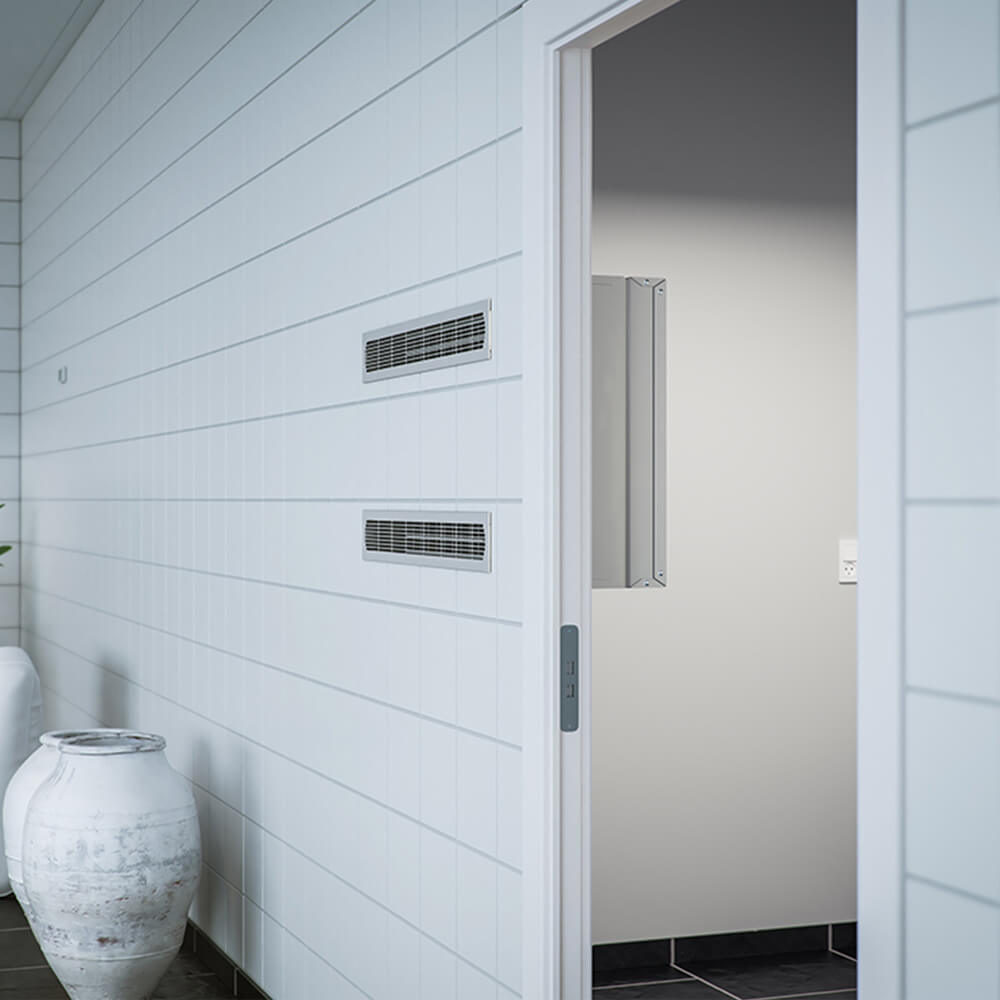

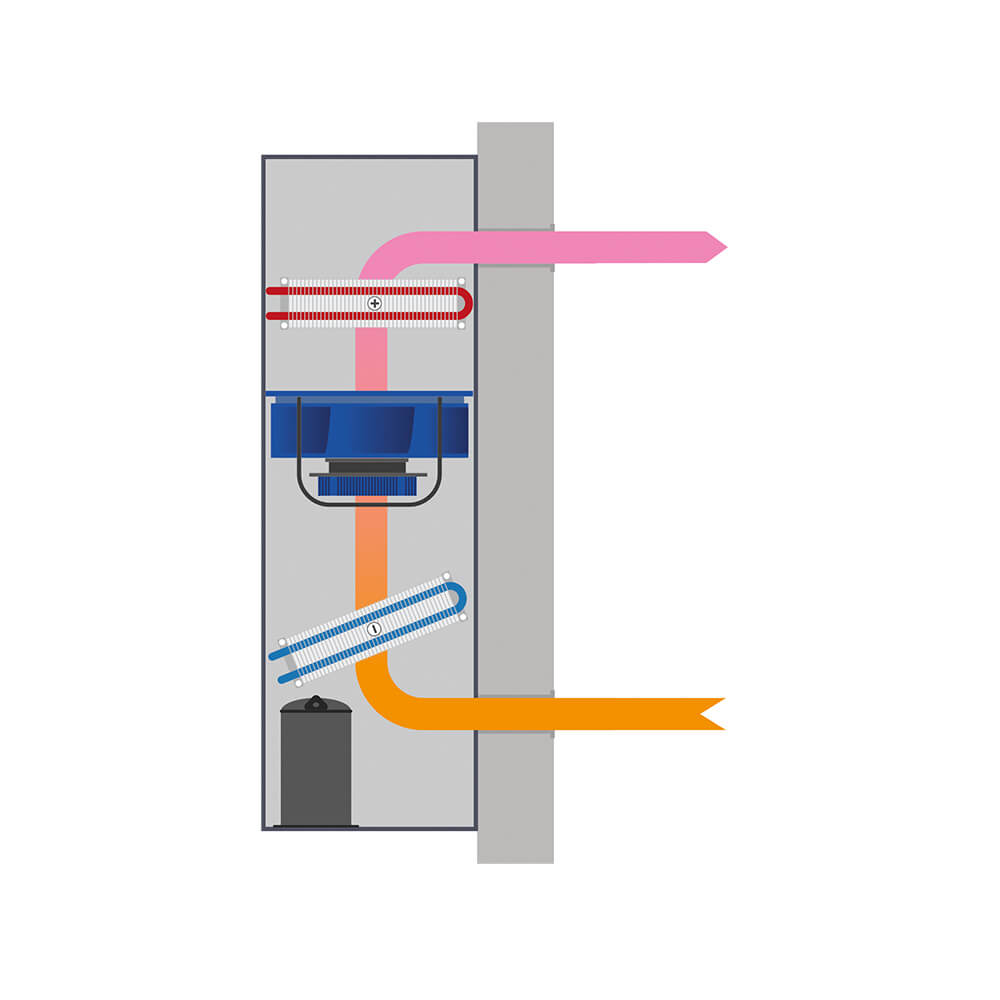

The CDP-T is an energy efficient through the wall dehumidifier for mounting in adjoining locations. It works in accordance with the condensation principle. A fan draws the humid air into the dehumidifier and through an evaporator coil. When passing through the evaporator the air is cooled down to below its dew point temperature, and its content of water vapour is condensed into water, which falls into the drip tray and then is led from the drip tray to a drain. The cold, dry air is then passed over the condenser coil where it is re-heated, before leaving the unit at a temperature, which is approx. 5°C higher than at the inlet. Built in electronic hygrostat and thermostat. Active, demand controlled defrosting.

Product specifications

Select model:
CDP 40T
CDP 50T
CDP 70T

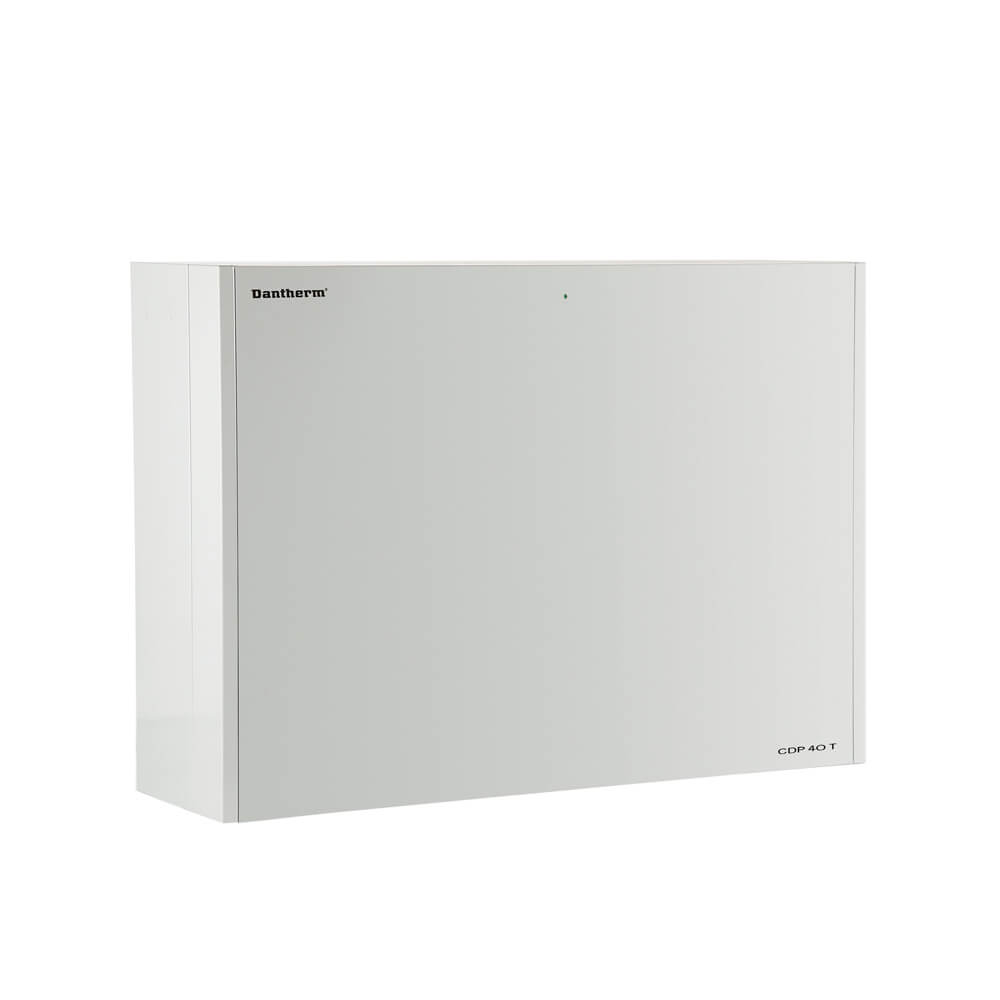

Specifications	Units	CDP 40T
Operating temperature range	°C	10-36
Operating humidity range	% RH	40-100
Dehumidification @ 30°C/60% RH	l/24h	35,0
Specific Energy Consumption @ 30°C/60% RH	kWh/l	0.47
Air flow	m³/h	400
Max. external pressure loss	Pa	15
Sound pressure level @1m	dB(A)	43
R407c gas weight/CO₂ equivalent	kg/t	0.7/1.24
Power supply	V/Hz	230/1ph/50
Power consumption @ 30°C/60% RH	kW	0.69
Power consumption with electric heater @ 30°C/60% RH	kW	2.69
Heat recovered @ 30°C/60% RH	kW	1.97
Product size (w x d x h)	mm	998 x 304 x 700
Weight	kg	57.5

Specifications	Units	CDP 50T
Operating temperature range	°C	10-36
Operating humidity range	% RH	40-100
Dehumidification @ 30°C/60% RH	l/24h	56,5
Specific Energy Consumption @ 30°C/60% RH	kWh/l	0.48
Air flow	m³/h	680
Max. external pressure loss	Pa	15
Sound pressure level @1m	dB(A)	44
R407c gas weight/CO₂ equivalent	kg/t	0.9/1.60
Power supply	V/Hz	230/1ph/50
Power consumption @ 30°C/60% RH	kW	1.04
Power consumption with electric heater @ 30°C/60% RH	kW	4.54
Heat recovered @ 30°C/60% RH	kW	2.95
Product size (w x d x h)	mm	1148 x 304 x 700
Weight	kg	66.0

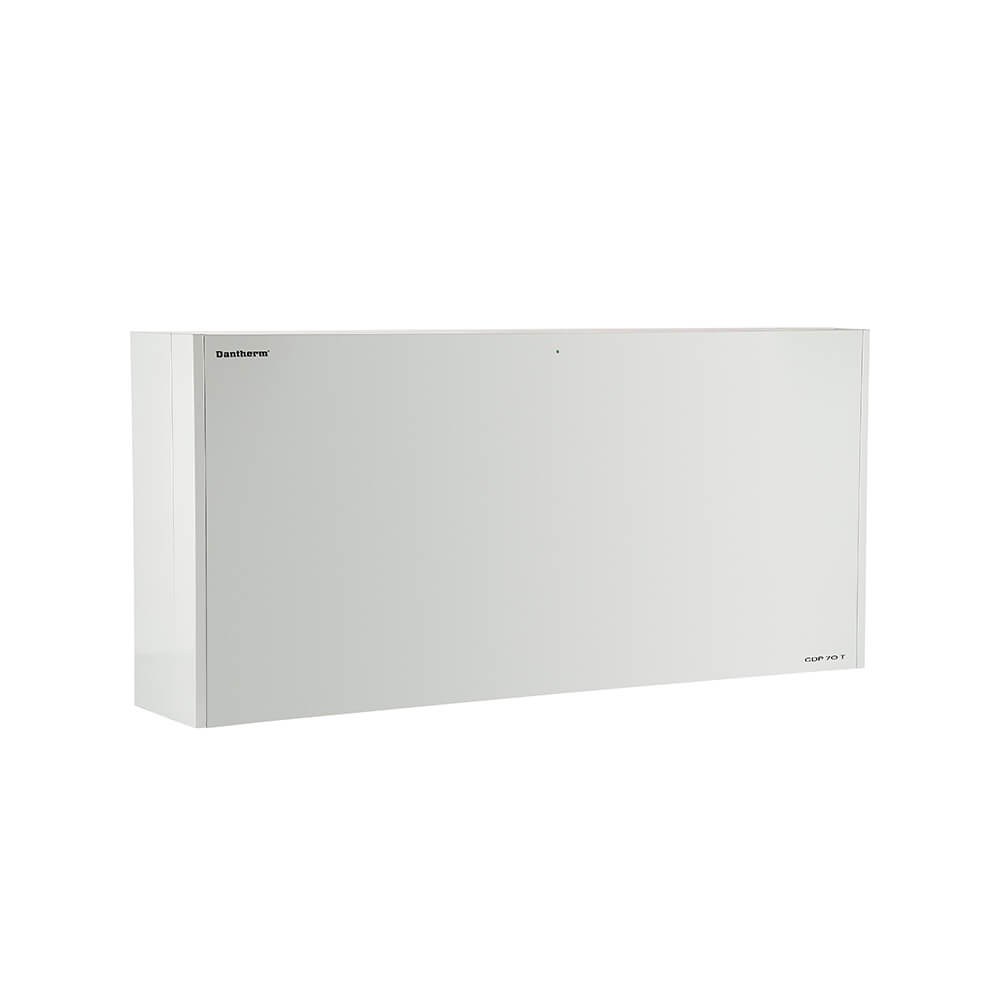

Specifications	Units	CDP 70T
Operating temperature range	°C	10-36
Operating humidity range	% RH	40-100
Dehumidification @ 30°C/60% RH	l/24h	81,2
Specific Energy Consumption @ 30°C/60% RH	kWh/l	0.43
Air flow	m³/h	900
Max. external pressure loss	Pa	15
Sound pressure level @1m	dB(A)	47
R407c gas weight/CO₂ equivalent	kg/t	1.2/2.13
Power supply	V/Hz	230/1ph/50
Power consumption @ 30°C/60% RH	kW	1.24
Power consumption with electric heater @ 30°C/60% RH	kW	6.24
Heat recovered @ 30°C/60% RH	kW	4.15
Product size (w x d x h)	mm	1483 x 304 x 700
Weight	kg	77.5

Suitable for:

Leisure and recreation

Swimming pools
