Locating objects through magnetic field measurements with the MD200
The MD200 is perfectly suited for measuring changes in magnetic fields due to its two excitation coils and four receiver coils. The measuring device reacts with high sensitivity to the smallest changes of the terrestrial magnetic field, as it is influenced by ferromagnetic objects under the ground.

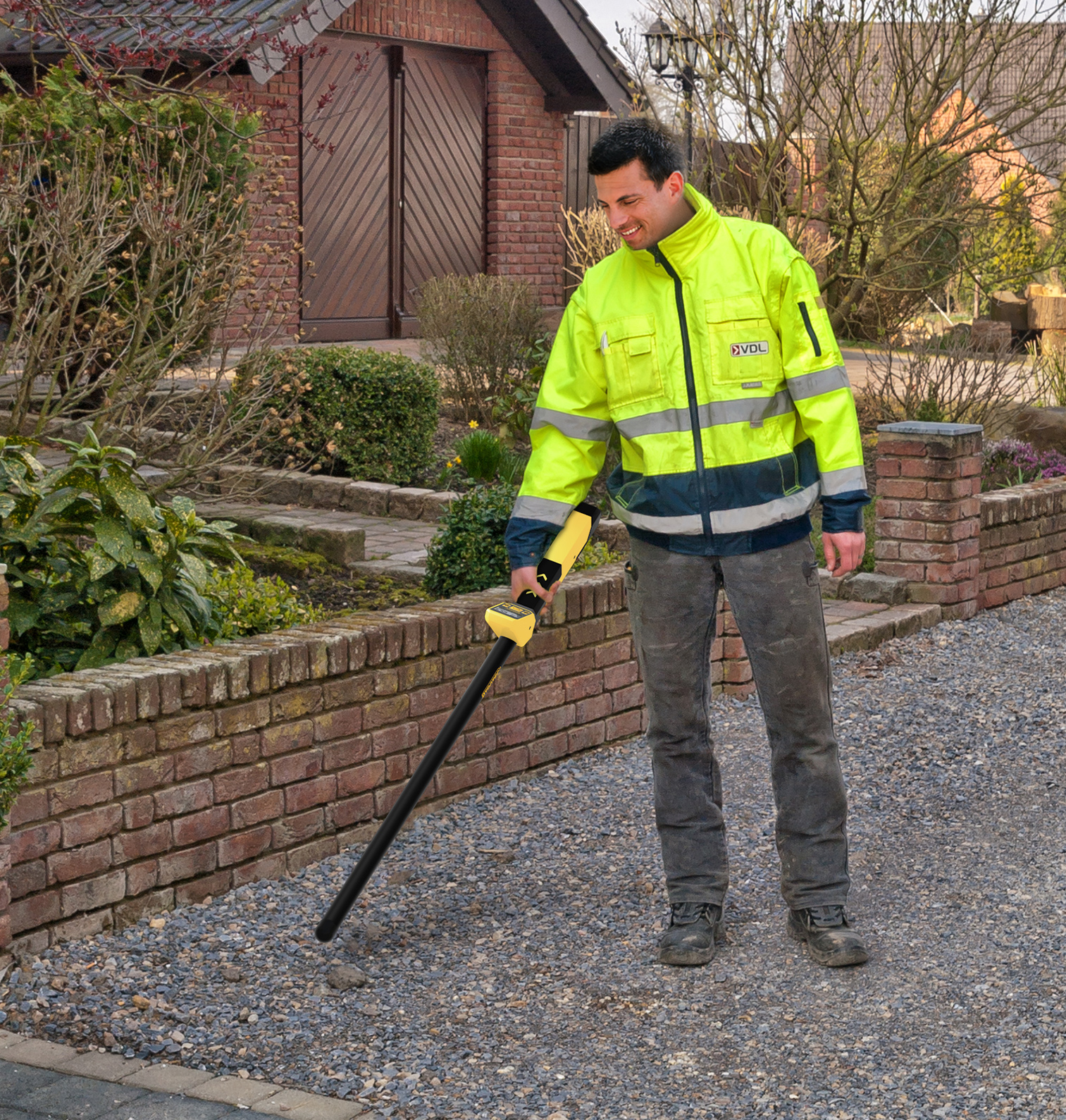

As you approach such an object with the MD200, the device indicates the increased signal both visually and acoustically.

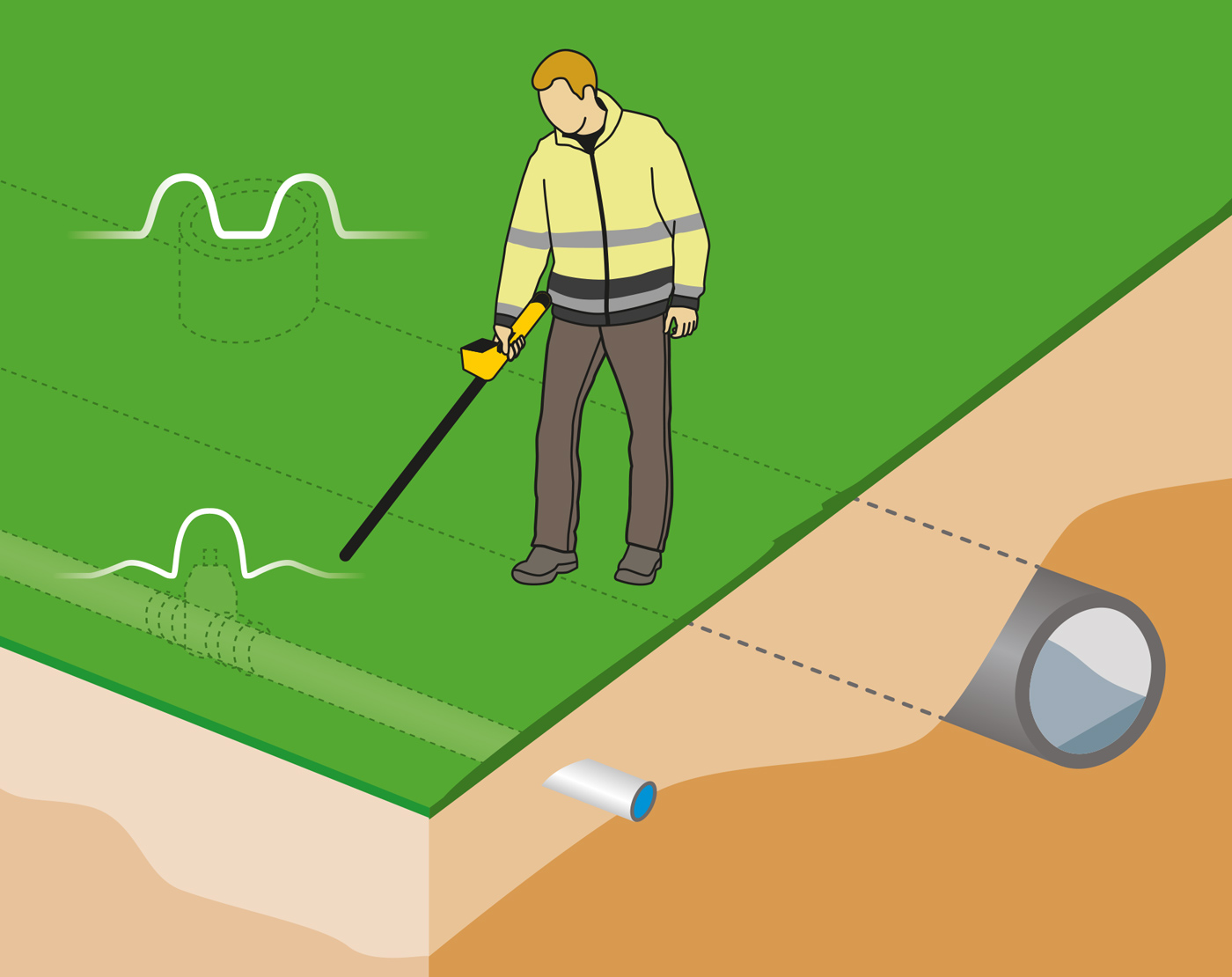

For larger objects – for example manhole covers – the maximum values are generated at the object edges. By swinging the magnetometer and comparing the signal, the exact location can thus be determined.

Technical data | ||
---|---|---|
General information | ||
Article number | 3.110.010.010 | |
Magnetic field | ||
Detection of changing magnetic fields, caused by ferromagnetic metals in the ground | Up to a depth of 3 m (depending on the size of the object searched for) | |
Power supply | ||
Internal (battery) | 4x 1.5 V, AA | |
Device control | ||
Membrane keyboard | ||
Ambient conditions | ||
Operation – min. temperature [°C] | -20 | |
Operation – max. temperature [°C] | 50 | |
Display | ||
LCD | ||
Monochrome | ||
Housing design | ||
Other | Carbon fibre probe rod | |
Operating time | ||
approx. 24 h | ||
Type of protection | ||
Schutzart Sondenstab | IP68 | |
Schutzart Gehäuse, ausgenommen Batteriefach | IP64 | |
Dimensions | ||
Length (packaging excluded) [mm] | 1,115 | |
Weight | ||
(packaging excluded) [kg] | 0.83 | |
Standard scope of delivery | ||
Standard scope of delivery | ||
Transport bag | ||
Operating manual | ||
Ascertainable measured values and functions | ||
Internal sensors | ||
Detection of ferrous metals | ||
Detection of changing magnetic fields, caused by ferromagnetic metals in the ground | ||
Functions and features | ||
Audiovisual alarm upon detection of alternating current | ||
Indication of signal strength | ||
Manually adjustable sensitivity level | ||
Adjustable display background illumination | ||
Variable volume control | ||
180 ° display image inverter | ||
Erase function | ||
Waterproof carbon fibre probe rod | ||
Dual field strength indication – optical and acoustic | ||
Maximum value display of the magnetic signal |
