Fire-Resistant Materials
The FDS-3G…KS is made from fire-resistant, tough yet lightweight materials for easy installation and reliable fire protection
Fast and easy installation
While still providing effective passive fire, smoke and gas protection
Inspection made easy
Two inspection openings for dimension with width and height greater than 200 mm as standard

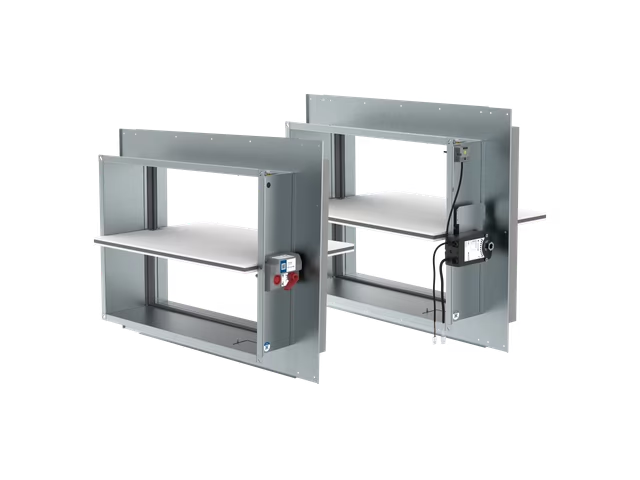

Kit out-fitted FDS-3G…KS fire dampers represent easy way to perform installation. While still facilitate passive fire protection and prevent the spread of toxic gases, smoke and fire through compartmentalization.
Fire dampers are CE certified following the Construction Products Regulation according to EN 15650. Dampers are tested according to EN 1366-2 and classified according to EN 13501-3. Fire dampers are designed for the installations listed and described in their Handbook.
The FDS-3G…KS fire dampers are by default supplied with either a manual or an actuator mechanism. An optional supply and communication unit is also available.
The opening and closure of the damper blade can be activated remotely for actuator versions. In case of fire when the air in the duct exceeds 72 °C or 74 °C, the thermal fuse melts in both actuator and manual versions. The melting of the thermal fuse activates the closure of the damper blade automatically. The damper blade is then mechanically locked in the closed position.
The fire dampers have casings made from galvanized sheet metal. The blades are made from non-asbestos insulants and have a rubber seal for cold smoke and an intumescent seal. Intumescent seal expands in fire situation.
